Local Response Curve
 |
 |

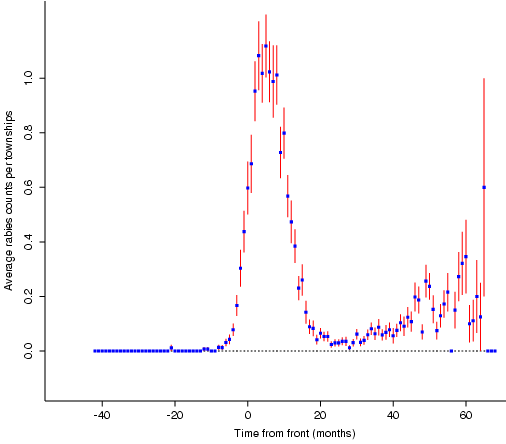

| Voila! A beautiful Kendall Type 1, the result of averaging the
synchronized profiles across all townships (plus or
minus one standard error). |
 |
|
This is roughly what I expected, although I am struck by the steady rise
which appears at the tail end of this "local response curve". It appears
that the endemic phase is not yet stable.
Note that this plot doesn't show the oscillations that we might have
expected, based on the previous slide (the cross-section of rabies
wavefronts). Any oscillations which are actually occuring would be masked by
the averaging (the oscillations in the towns will tend to be out of
phase, which means that when they are added together the result will not
present a wavy appearance).
