Day 36, MAT115

• This session will be captured on Zoom, if I remember to turn it on, and record it.

  Our page of zooms and the play-by-plays.

• You have an IMath assignment on the go, covering symmetry, and Platonic solids, and fractals.

• A reminder that you should be thinking about your logo projects. We've just covered some lovely fractals, which might be suitable additions to your logo; this week we move on to Mobius bands, links, and knots.

• Your uploaded image of your set of Platonic solids is due today.

• was like craft day. We got out the scissors, and tape, and made some Mobius bands. We learned that
  • A Mobius band is made by giving a strip of paper a half twist.
  • It only has one side, and one edge. Today we'll draw some (hopefully some of you are better draw-ers than I!).
  • When you cut one down the middle, the result is a strip twice as long (but it doesn't get cut in half!); if you cut that one, it divides into two bands linked together: this introduces us to "links". That particular link is called "Solomon's knot" (but it's really a link -- today we'll make the distinction).


  • If you cut one into "thirds", you get two bands, linked together: one is a mini-me of a Mobius band, and the other is a twice-twisted band.

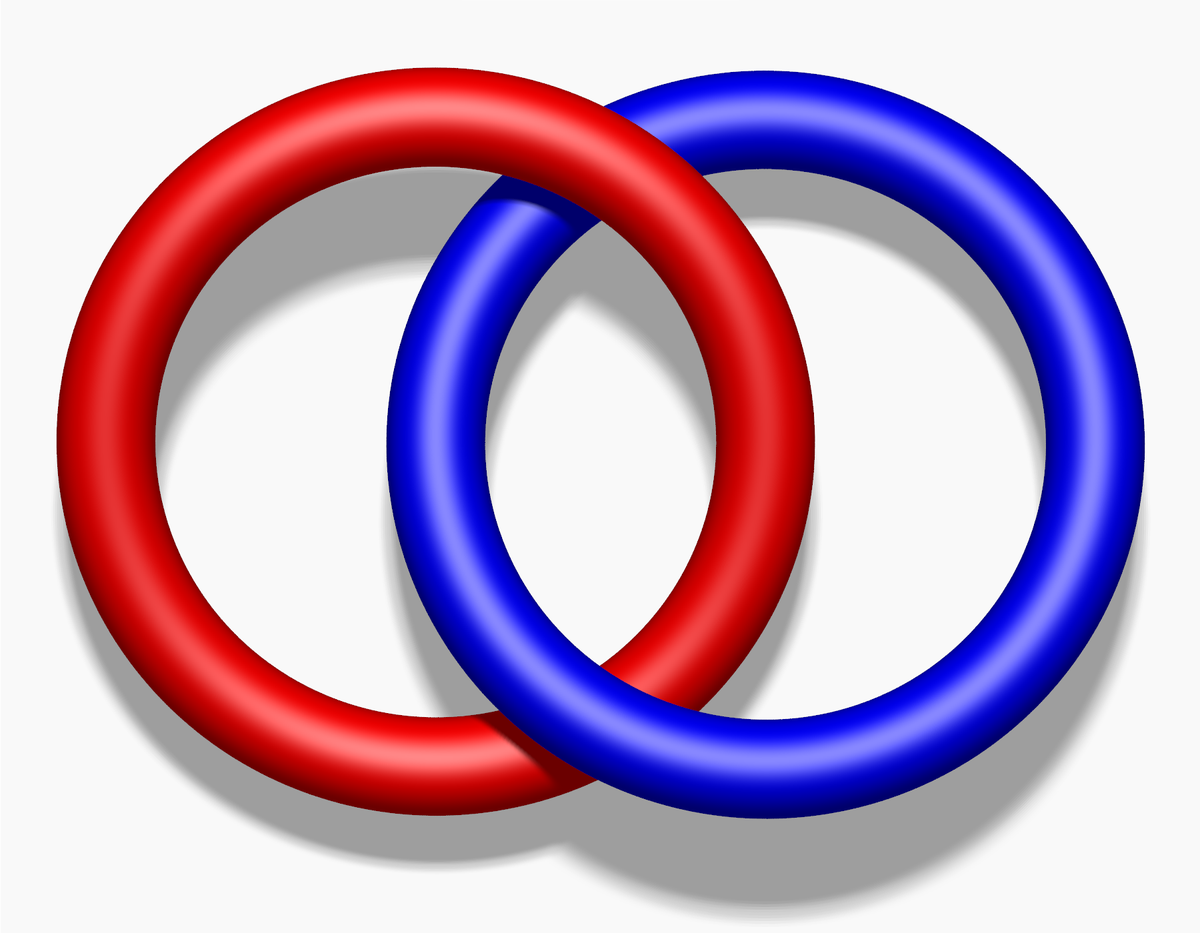

    They're linked in a different way, however: they're linked in a Hopf link:



Today is just a "gentle introduction to links and knots". Next time we'll start in on how to distinguish them, which involves a little more mathematics.

• Let's reprise our craft of the last time, and make a mobius band, and also a thrice-twisted band. Then we'll squash them! One is the official recycling symbol, and the other had rotational symmetry of order three.


  Which reminds me of a logo (remember your logos, which will be presented in a couple of weeks?)



• Then we'll cut each of these in half. We know what happens to the Mobius band -- what happens to the thrice-twisted band?

  It becomes a knot: a single band, but twisted in a way that it can only be untwisted by cutting....

• Time to draw. Let me begin by mentioning that a belt is a great tool for creating mobius bands, and the like....

  How does the Mobius band relate to links and knots? Let's try to draw some edges:

  • Draw what I call "the wedding band" -- an untwisted band.
  • Draw the edge of a Mobius band.
  • Draw the edge of a twice-twisted Mobius band.
  • Draw the edge of a thrice-twisted Mobius band.
  This class of objects will lead us to the notions of links and knots....

• Links:
  • Links are like the links you find in chains: constructed by "linking" loops (or rings) together.

  • Borromean Rings: "Is it possible to create a link of three loops (or rings) in such a manner that they are indeed linked, yet if we remove any one of the rings the other two become unlinked?"

  • Yes, indeed! Let's try it with rubber bands first.

    Standard diagram of the Borromean rings

    A realization of the Borromean rings as ellipses

    Coat of arms (of the municipality of Hallsberg, Sweden) showing padlocks in Borromean rings configuration


    (Thanks Wikipedia!)

  • More on the Borromean rings:
    • I always think of them in the context of this quote:

      "We must all hang together, or assuredly we shall all hang separately." Benjamin Franklin, at the signing of the Declaration of Independence.

    • Led Zeppelin, in the album sleeve of their album Led Zeppelin IV used it:

      "Drummer John Bonham's symbol, the three interlocking rings, was picked by the drummer from [Rudolf Koch's Book of Signs]. It represents the triad of mother, father and child, but also happens to be the logo for Ballantine beer." (from the Wikipedia article on Led Zeppelin IV).



      (thanks Matt!).

      Ironically I just discovered John Paul Jones's symbol in another brewing company (while enjoying one of their products); Arcadia Brewing company of Kalamazoo, Michigan, has this as their logo:



      Maybe every Led Zepellin symbol is on a beer somewhere?

    • If you want to draw the Borromean rings, you'd draw three circles, as in the first figure above:	but you'd want to indicate, somehow, that one ring is below another ring (aka the "Irish Trinity"):

      One more:



      Scene from Stora Hammar stone

      with a closeup of the rings:

  • Now it's on to knots. Today we'll just look at a couple of the simplest knots.
    • Knot Theory
      • We begin with the "unknot", of course: a circle. This is the simplest knot, but not very interesting.

      • Trefoil Knot -- the simplest interesting knot. It has three crossings, and there's no way to make it any simpler! We will also call it the 3-knot:


      • Can we make a simpler knot -- one with either 1 or 2 crossings? Why not?

      • There are two different ways to think about making the trefoil knot: as a
        1. twist knot, and as a
        2. torus knot.
        Let's draw it in these two different ways.

      • The figure-eight knot:


    • Let's continue by talking about the video from Vi Hart, about snakes and graphs.
      • This was assigned because it relates to graphs; but also because it relates to knots and links. Vi is doing double duty for us here! (I hope that you also watched her video about the Mobius Music Box).
      • Notice her graphs in the first part of the video: those are the two non-planar graphs, and the graph of an octahedron!
      • By making a closed-curve squiggle graph, you're creating a knot. (A knot is a single piece of string, in which the two cut ends are ultimately tied back together to create a single continuous piece of string -- which may be "knotted"!)
      • "Borromean snakes": "No two snakes are actually linked to each other" (1:22).
      • Just before the Borromean snakes there is a trefoil snake (1:14).
      • "What kind of knots are you drawing and can you classify them?"

    • Now let's migrate our discussion of knots over to "Knot Mosaics":


      (an example of Solomon's Knot -- which you might notice is actually a link!)

      • Celtic Knot Mosaic Examples: (not quite the same idea, but pretty! And again, you'll see that there are links contained therein -- including Borromean rings)
        • Triangular paper (in case you want to try making some of those).

      • Knot Mosaics
        • help us to draw Borromean Rings, for example: use your Mosaic Graph Paper to create your own version of the Borromean Rings.
        • Rectangular Mosaic Tiles and symmetry
        • We can use them to make any knots: try your hand at
          • the trefoil knot:


          • The figure-eight knot:


    • Something fun to do with a few friends: can we make a human knot in the shape of a trefoil knot? If so, then we won't be able to undo it -- you and your friends will be knotted together forever! I hope that's a good thing....
