Wallpaper Groups

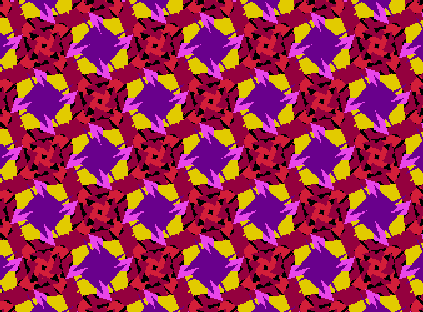

Symmetry group 10 (p4)

This is the first group with a 90° rotation, that is, a rotation of order 4. It also has rotations of order 2, that is, half-turns. The centers of the half-turns are midway between the centers of the order-4 rotations. There are neither reflections nor glide-reflections. The lattice is square, and a quarter of a square fundamental region for the translation group is a fundamental region for the symmetry group.
