Kriging ILL County Breast Cancer Mortality Rates
-
Introduction
-

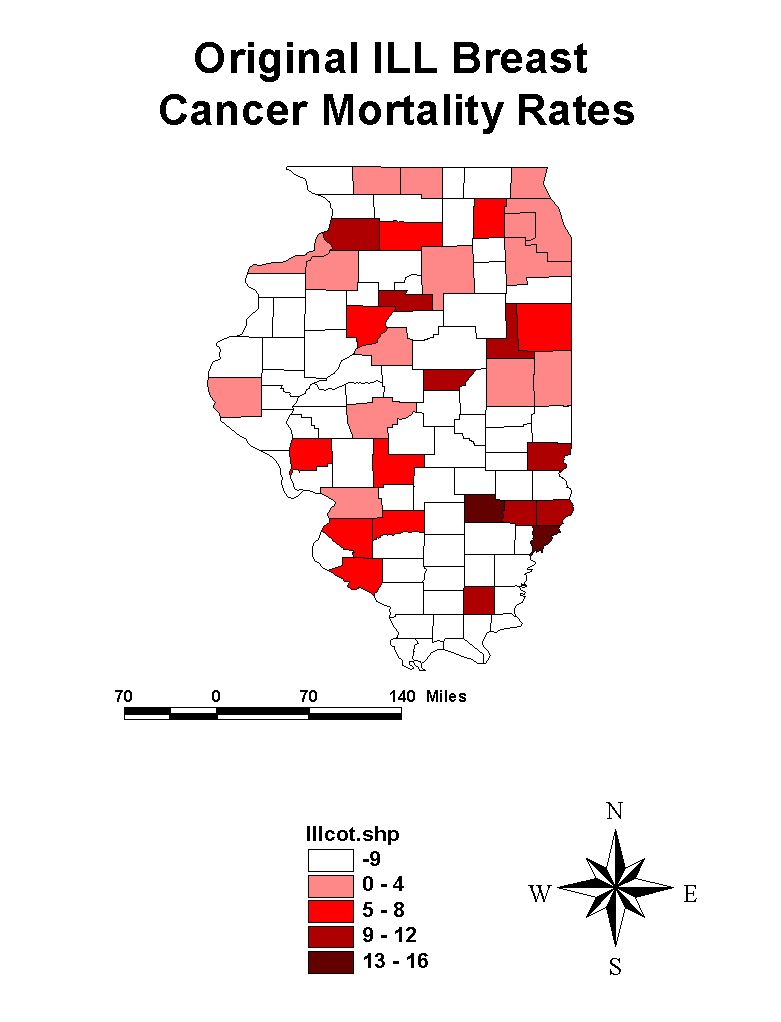

Original ILL breast cancer mortality rates
(-9: missing)
-

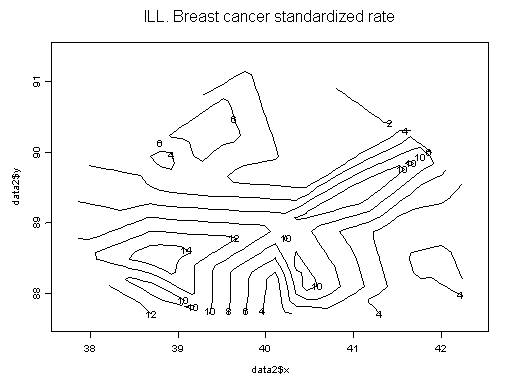

ILL breast cancer mortality rates contour
-

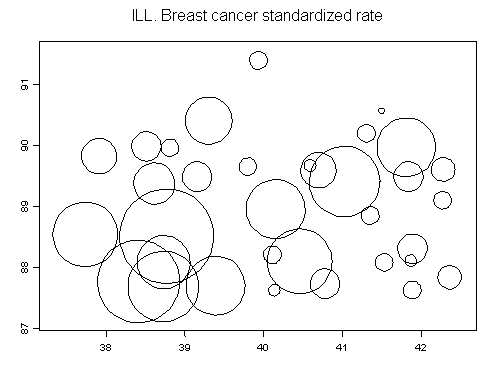

ILL breast cancer mortality rates circle plot
-
To find out whether there is trend and decide whether to use ordinary
or universal kriging accordingly, we check the

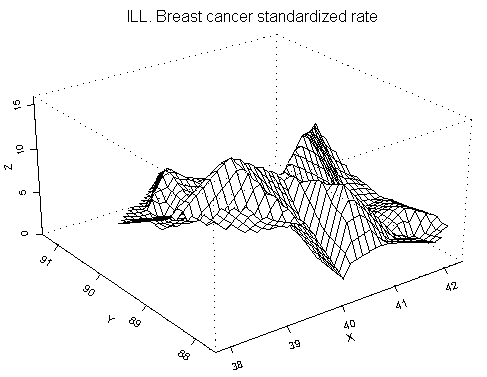

perspective plot
-

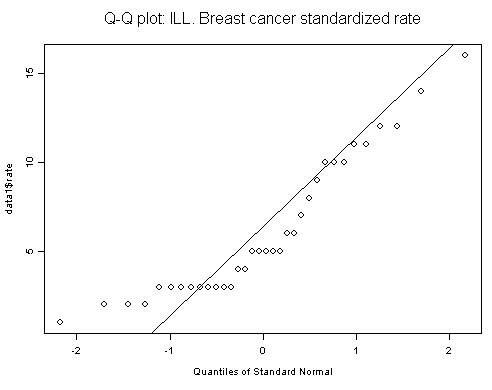

To test for normality, check QQ plot
-

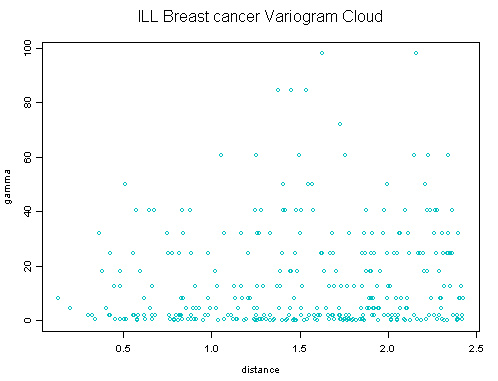

variogram cloud
-

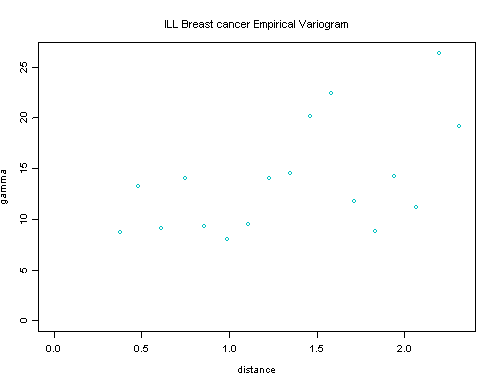

sample variogram
-

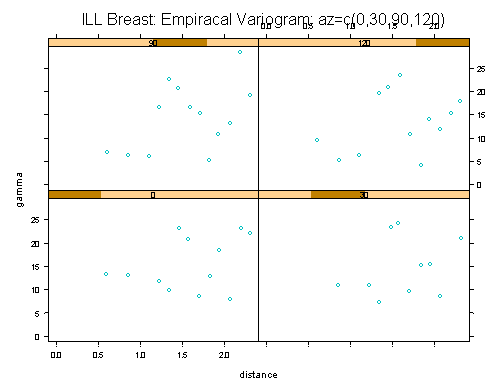

To apply kriging method, we'd like to check whether the underlying
process is isotropic , i.e., the variogram
cloud at different directions are similar, 'cause then theoretical
variogram model can be handled easily. We achieve that by viewing
variogram plot at 4 ranges of angles.
-

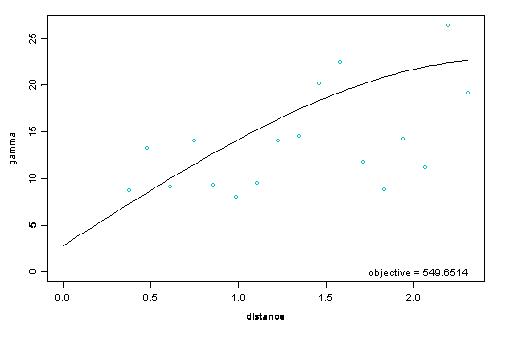

Theoretical (spherical)
variogram fitted according to sample variograms with Splus,
where the parameters are found to be: range=8, sill=0.35, nugget= 2.8
-

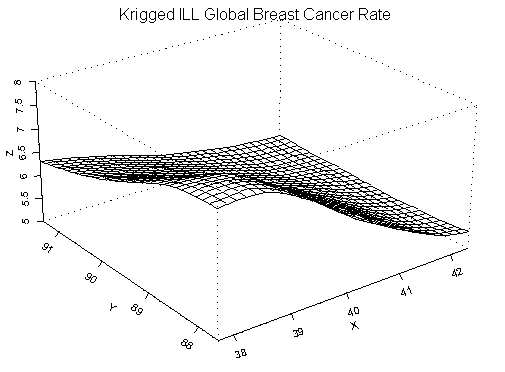

Globally Krigged ILL breast cancer mortality rates
, by which I mean the rate is considered distributed all over ILL

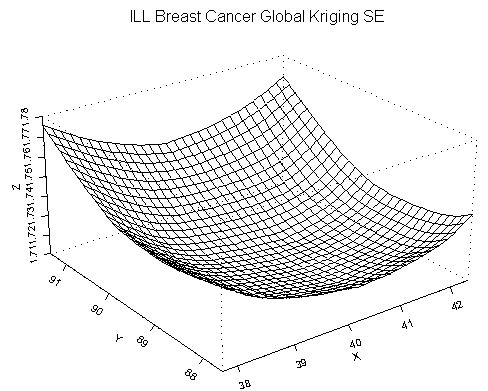

(instead of at counties (centers) only); standard

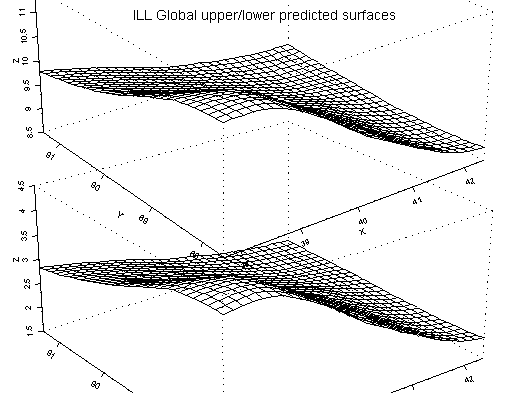

error surface ; and 95% confidence surfaces.
-
Krigged mortality rates where there are no observed values, essentially,
an imputation with kriging
-

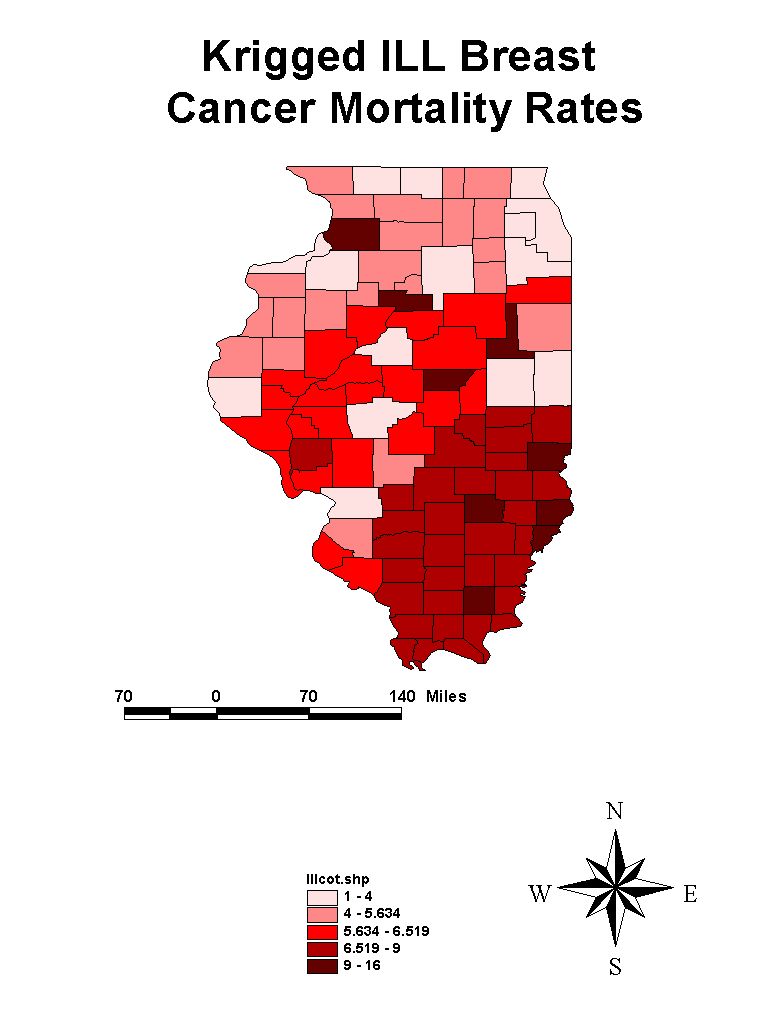

Finally, graphical display of krigged ILL breast cancer mortality rates
-
Discussions:
- Another type of kriging: noiseless, not available in Splus
- Some doubt on Normality: Transformation might give better results,
but adjustment is needed to ensure unbiasedness.
- Or even better, Data essentially (irregular) lattice discrete data
(counts). Therefore,
- Conditional Auto Poission model (ref: (6.5.6) (6.6.7) of Cressie
1993).
- Hierarchical Poisson model: Underlying mortality rate \lambda(s) is
a continuous process, given which as parameters, the counts independently follow
Poisson distribution.
The data and scripts used to produce these Splus
analyses are available.
The postscript report.
