2.1 Disk Structure and Partitions
2.1.1 Disk Structure
A hard disk is physically composed of a series of flat, magnetically coated platters stacked on a spindle. The spindle turns while the heads move between the platters, in tandem, radially reading/writing data onto the platters.

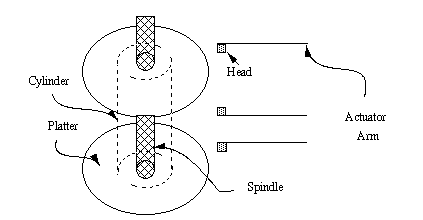

FIGURE 2.1 Physical Disk Structure

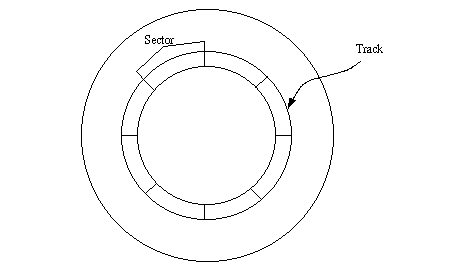

FIGURE 2.2 Disk Platter
